ANV-STB/200

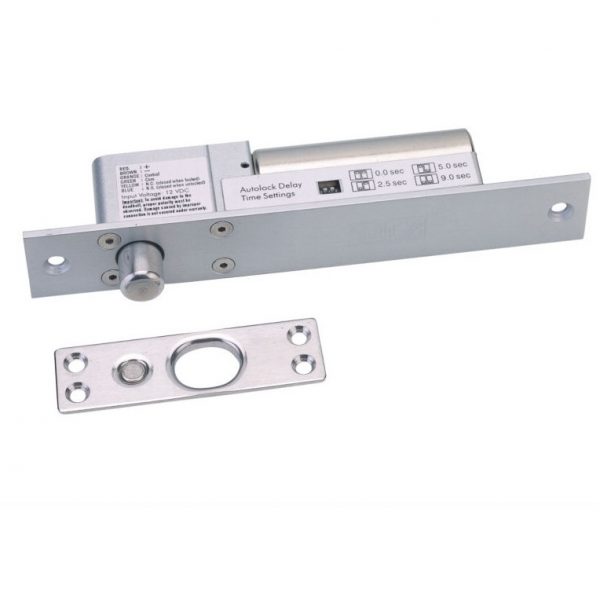

Electric bolt lock With Delay & Signal
- Description
- SPECIFICATIONS
- DOWNLOAD
Description
Features
- Professional electric bolt lock, Full solid stainlesssteel lock and lock body, durable
- Ultra-low temperature design, less heat is safe andreliable
- Optical control techniques to prevent mechanical failure
- Ultra-low-power design, energy saving
- The product is suitable for Woodeng Door,Glass Door,Metal Door Fireproof Door .
- Time delay setting: 0/3/6 sec.
- Face Place Material: Stainless Steel
- Face Plate: 200Lx28WX38H(mm)
- Bolt: 15 mm
- Voltage: 12VDC
- Start Current: 900mA
- Standby Current: 120mA Signal output
- Time Delay: Yes, 0,3,6 sec
- Open Wire: Yes
- Solid Bolt: Polishing housing, 800Kg Holding Force
- For: Woodeng Door,Glass Door,Metal Door Fireproof Door
- Induction Distance: 8mm
- Special Designed: Tested to 500000 cycles
- Weight: 0.7 KG
| Name | Size | Download |
|---|---|---|
| Electric bolt lock With Delay & Signal | 213 KB |
