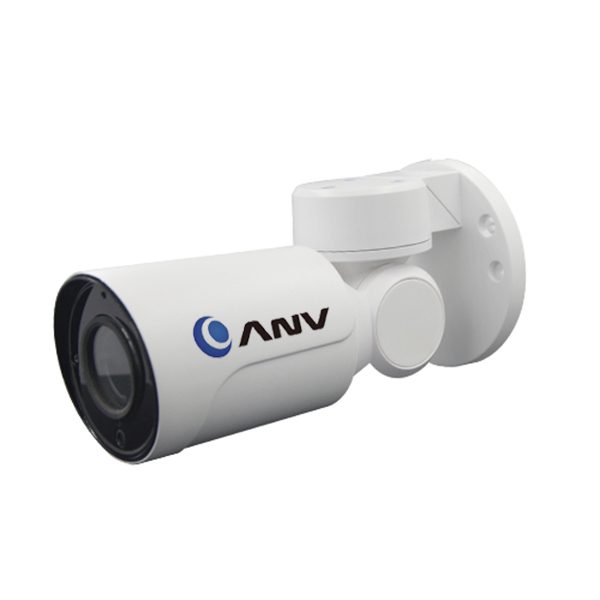

ANV- 17W964G30-PTZ4
H.265 5.0M IR Ultra Bullet PTZ IP Camera
- Description
- SPECIFICATIONS
- DOWNLOAD
Description
Features
- Using 1/3” Sony Ultra low illumination sensor,H.265/H.264 HD video
- UHD 5MP resolution 2592 x 1944
- Ultra low illumination 0.1Lux
- Day/Night (ICR), AWB, 2D/3D-DNR, IR-CUT.
- D-WDR, Motion Detection, Privacy Mask, Mirror, Flip
- RTSP and Onvif 2.6 compatible
- 265/H.264 dual-stream media server
- Easy-to-use P2P Cloud service
- Multi web browser, PC Client, mobile APP remote access
- Optional customization Lens/Audio/POE,etc.
- Using Lightning protection 4000V
- Strong water-proof housing, IP65
- 6 pcs High-power Array IR Leds, IR distance 30-40 meters
- Network PTZ control , 4 times optical zoom
- Supports one preset point
- Using HD 2.8 – 12 mm AF lens
| MODEL | ANV- 17W964G30-PTZ4 |
| Sensor | 1/2.9'' SONY Ultra low illumination sensor |
| Effective pixels | 5MP resolution |
| Electronic Shutter | AUTO, 1/25s ~ 1/100000s |
| Min. Illumination | 0.1Lux@F1.2(AGC ON), 0Lux IR on |
| Day/Night | Auto/Color/(B/W)/Timing |
| WDR | Digital WDR |
| White Balance | Auto/Manual |
| AGC/BLC/HLC | Support |
| DNR | 2D/3D DNR |
| Other | Multi-lines OSD, Motion Detection, Privacy Mask, Mirror, Flip |
| Lens | |
| Focal length | 2.8 ~12 mm AF lens; Network PTZ control , 4 times optical zoom |
| Zoom | 4X times optical zoom |
| IR Led | |
| IR Led | 6 pcs high power array IR Led |
| IR Distance | 30 ~40M |
| PTZ Function | |
| Pan/Tilt Range | Pan speed 0°~160°, Tilt Range: -45~ +40° |
| Preset Point | 1 |
| Manual Control Speed | Pan speed: 0.~30°/s, Tilt: 0~25°/s |
| Guard Position | Support |
| Preset Cruise | No |
| Online Upgrade | support |
| Encode | |
| Video Standard | H.265/H.264 |
| Video Resolution | Main Stream:
15fps@5MP(2592x1944),20fps@4MP(2592x1520),25fps@3MP/1080P/720P Sub Stream: VGA(640x480)/360P/QVGA@25fps, etc. |
| Video Bitrates | 32Kbps - 8Mbps, VBR/CBR |
| Audio Standard | G.711-u/G.711-a/AAC |
| OSD Overlay | Title and Time overlay |
| Network | |
| Network interface | 10M/100M/RJ45 port |
| Maximum image size | 2592 x 1944 |
| Frame | 25/30fps |
| network protocol | IPv4, HTTP, FTP, RTSP, UPnP, DNS, NTP, RTP, TCP,UDP, IGMP, ICMP, ARP,SMTP ONVIF 2.4, 2.6 |
| dual-stream | supports |
| General specifications | |
| menu | English/ France/ China/ Germany/ Russia |
| power supply | DC12V ; POE 802.3af/at ±10% |
| Power Consumption | < 10 W |
| Operating Temp. | -20℃-(+60)℃, 10%-90%RH |
| Name | Size | Download |
|---|---|---|
| ANV- 17W964G30-PTZ4, H.265 5.0M IR Ultra Bullet PTZ IP Camera | 708 KB |
